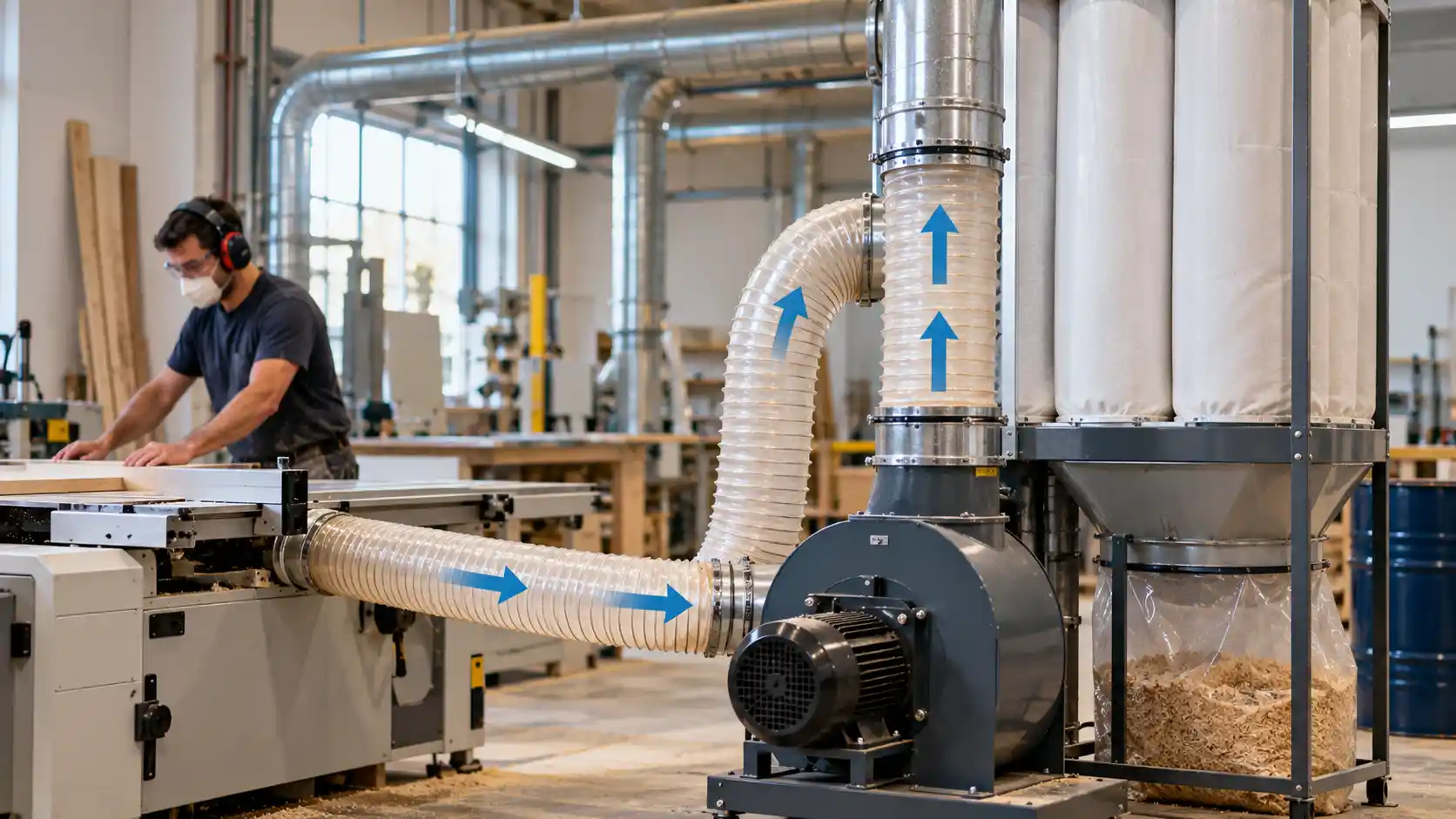

Dust Collector Airflow: How CFM Is Measured & Calculated

Summary:

“Dust collector airflow is the volume of air your system moves each minute, measured in CFM. This guide explains how to calculate it, measure it and keep it in the right range.”

A dust collector can look healthy from the outside and still fail at its job. The motor runs and the filters are clean, yet dust escapes from hoods and settles inside ducts. In most cases the cause is dust collector airflow: the system is not moving the right amount of air at the right speed.

What Is Airflow in a Dust Collection System?

Airflow is the movement of air through hoods, ducts, filters and the fan. Its job is to pull dust-laden air away from the source, carry the particles through the ductwork, and deliver them to the collector, where the filter separates dust from air.

Airflow is described by two linked values:

• Air volume: how much air moves in a given time.
• Air velocity: how fast that air travels.

Both must be right. A system with enough volume but low velocity can still drop dust inside the duct.

What Does CFM Mean?

CFM stands for cubic feet per minute. It is the standard unit for dust collector air volume in North America and in many industrial specifications worldwide. In metric units, airflow is shown as cubic metres per hour (m³/h). One CFM equals 1.699 m³/h.

When a vendor lists a dust collector CFM rating, it normally means the volume the fan can deliver at a stated static pressure. A fan rated at 3,000 CFM in free air will deliver far less once it pushes through ducts and filters. Always read the CFM together with its pressure value.

Air Velocity vs Air Volume

These two terms are often mixed up, so keep them separate.

Term	Unit	What it tells you	Where it matters
Air volume	CFM or m³/h	How much air the system moves	Fan selection, collector sizing
Air velocity	FPM (feet per minute) or m/s	How fast air moves at a point	Duct sizing, hood capture, dust transport

The link between them is simple:

CFM = Duct\ area\ (ft^2) \times Velocity\ (FPM)

If the duct gets smaller and the volume stays the same, velocity rises. If the duct gets larger, velocity falls and heavy particles may settle.

Duct Diameter and Transport Velocity

Duct diameter sets the velocity for a given airflow. To keep dust moving, the air must travel faster than the speed at which particles fall out of suspension. This is called transport velocity (or conveying velocity). Typical design ranges from industrial ventilation practice are shown below. Confirm them against your own dust type and applicable standards.

Material being conveyed	Typical duct velocity (FPM)	Approx. m/s
Gases and vapours	1,000 to 2,000	5 to 10
Fumes	2,000 to 2,500	10 to 13
Fine, light dry dust	2,500 to 3,000	13 to 15
Average industrial dust	3,000 to 4,000	15 to 20
Heavy or damp dust	3,500 to 4,500+	18 to 23+

Choose the duct diameter after you know the required CFM and the target velocity, not before. The table below shows the CFM a round duct carries at 4,000 FPM.

Duct diameter (in)	Area (ft²)	CFM at 4,000 FPM
3	0.049	196
4	0.087	349
5	0.136	545
6	0.196	785
8	0.349	1,396
10	0.545	2,182
12	0.785	3,142

Area of a round duct in ft² = π × (diameter in inches)² ÷ 576.

Capture Velocity at the Hood

Capture velocity is the air speed needed at the dust source to pull particles into the hood. It differs from duct velocity. It depends on how the dust is released and how much room air movement is present.

Dust release condition	Example	Capture velocity (FPM)
Released with no motion into still air	Tank evaporation, degreasing	50 to 100
Low speed into moderately still air	Spray booths, welding, container filling	100 to 200
Active release into fast air movement	Grinding, crushing, conveyor transfer	200 to 500
Very high speed release into rapid air	Abrasive blasting, heavy grinding	500 to 2,000

For a simple open hood, a common estimate for hood airflow is:

Q = V \times (10X^2 + A)

Here Q is airflow (CFM), V is capture velocity (FPM), X is the distance from the hood face to the source (ft), and A is the hood face area (ft²). Because X is squared, a small increase in distance raises the airflow need sharply. Placing hoods close to the source is the cheapest way to reduce required CFM.

Static Pressure and Pressure Losses

Static pressure (SP) is the resistance the fan must overcome to move air. It is measured in inches of water gauge (in. w.g.) or pascals (Pa). Think of CFM as the quantity of air and static pressure as the effort needed to move it.

Three pressure terms appear in airflow measurement:

• Static pressure: the pressure that pushes on duct walls. It shows resistance.
• Velocity pressure (VP): the pressure caused by air movement. It is used to find velocity.
• Total pressure: static pressure plus velocity pressure.

For standard air, velocity follows from velocity pressure:

V\ (FPM) = 4005 \times \sqrt{VP\ (in.\ w.g.)}

Component	Why it creates loss	How to reduce it
Hoods	Air accelerates into the opening	Use well-shaped hoods with flanges
Straight duct	Wall friction	Avoid oversized length and rough surfaces
Elbows and branches	Air changes direction	Use long-radius elbows and 30° to 45° branch entries
Filters	Dust cake and media resist flow	Clean on differential pressure, replace worn media
Cyclones, silencers, dampers	Add fixed resistance	Choose low-loss designs, open blast gates fully
Leaks	Air enters at the wrong point	Seal joints and inspect flexible hose

As filters load with dust, pressure loss rises and airflow drops. Airflow is therefore not a one-time number. It changes during operation.

The Role of Filters

Filters affect airflow in two ways. Their resistance is a major part of system static pressure, and their size sets the air-to-cloth ratio: the CFM divided by the filter media area.

Air\text{-}to\text{-}cloth\ ratio = \frac{CFM}{Filter\ area\ (ft^2)}

Pulse-jet collectors commonly run from about 2:1 to 6:1, depending on the dust. Sticky, fine or abrasive dust needs a lower ratio. A high ratio means faster loading, more frequent cleaning and shorter filter life. Track differential pressure (the pressure drop across the filter bank). It is the quickest sign that airflow is changing.

The Role of Fans

The fan creates the pressure difference that moves air. Every fan has a fan curve showing how CFM falls as static pressure rises. Your ductwork has a system curve showing how pressure rises as CFM increases. The point where the two curves cross is the real operating point.

Fan laws predict what happens when speed changes:

Change in fan speed (RPM)	Airflow	Static pressure	Power
Increase by 10%	+10%	+21%	+33%
Decrease by 10%	−10%	−19%	−27%

Because power falls much faster than airflow, a variable frequency drive (VFD) is a strong energy saver.

Why Insufficient Airflow Causes Problems

When dust collector airflow is too low, you may see:

• Dust escaping from hoods into the work area.
• Particles settling in ducts, which narrows the passage and worsens the problem.
• Clogged branches and blocked blast gates.
• Higher fire and explosion risk where combustible dust builds up.
• Difficulty meeting exposure limits and housekeeping rules.
• Quality problems in contamination-sensitive processes.

Why Excessive Airflow Is Also Inefficient

More air is not always better. Excess airflow causes:

• Higher energy cost, because fan power rises with the cube of speed.
• Faster filter wear, since high velocity pushes dust deeper into the media.
• More noise and duct vibration.
• Duct erosion, especially with abrasive dust.
• Loss of useful product pulled into the system by mistake.
• Higher make-up air demand, which adds heating or cooling load.

The goal is the lowest airflow that still gives full capture and reliable transport.

Basic CFM Calculation for Dust Collection

1. List every pickup point (machines, hoods, transfer points).
2. Set the airflow for each point from the equipment maker’s data or the capture velocity formula.
3. Choose duct diameters that give the target transport velocity.
4. Add the branch CFM values to get the total.
5. Allow for leakage and future use, commonly 5% to 15%.
6. Estimate total static pressure along the most resistant path.
7. Select a fan and collector that deliver the total CFM at that pressure.

If only some branches run at one time, size for the largest number open together and use blast gates to direct airflow.

Worked Example

A plant has five pickup points on one collector. The target duct velocity is 4,000 FPM.

Pickup point	Duct size	Airflow at 4,000 FPM
Machine A	4 in	349 CFM
Machine B	4 in	349 CFM
Machine C	5 in	545 CFM
Machine D	5 in	545 CFM
Transfer hood	6 in	785 CFM
Branch total		2,573 CFM

Step 1: Add a 10% leakage allowance. 2,573 × 1.10 = about 2,830 CFM.

Step 2: Size the main duct. Required area = 2,830 ÷ 4,000 = 0.7075 ft². Diameter = √(4 × 0.7075 ÷ π) × 12 = about 11.4 in, so choose a 12 in main duct.

Step 3: Check the actual velocity. A 12 in duct has an area of 0.785 ft². Velocity = 2,830 ÷ 0.785 = about 3,600 FPM, which suits average industrial dust.

Step 4: Estimate static pressure (illustrative values).

Component	Loss (in. w.g.)
Hood entry	1.5
Branch duct	0.8
Main duct	1.2
Elbows and fittings	0.7
Filter (dirty condition)	4.0
Other (cyclone, outlet)	0.3
Total	8.5

Result: Select a fan that delivers about 2,830 CFM at 8.5 in. w.g. at its operating point. Then check the air-to-cloth ratio: 2,830 CFM across 900 ft² of media gives about 3.1:1. These pressure values are for demonstration only. Calculate real losses from your own layout.

Common Airflow Measurement Tools

Tool	What it measures	Typical use
Pitot tube with manometer	Velocity pressure and static pressure in ducts	Most accurate field method for duct CFM (traverse readings)
Digital manometer or magnehelic gauge	Static and differential pressure	Filter loading, fan inlet and outlet checks
Vane anemometer	Air speed at hoods and open faces	Hood face velocity checks
Hot-wire anemometer	Low air speeds with high sensitivity	Capture velocity near sources
Flow hood (capture hood)	Total airflow at an opening	Grilles and open hood faces
Differential pressure transmitter	Continuous pressure data	Live monitoring in control systems
VFD or motor readings	Fan speed and power	Trend and energy tracking

How a Pitot Traverse Works

1. Pick a straight duct section, ideally 7.5 or more diameters downstream and 3 diameters upstream of disturbances.
2. Drill small test ports.
3. Take velocity pressure readings at several points across the duct (commonly 10 or more).
4. Convert each reading to velocity, then average.
5. Multiply the average velocity by the duct area to get CFM.

Record duct temperature and pressure where possible, because air density changes the result.

Turning Airflow Data into Control

Measuring airflow once at commissioning is useful, but dust collectors change over time. Filters load, gates move and processes shift. An industrial air filtration control system uses live sensors such as differential pressure transmitters, flow sensors and VFDs to hold airflow near the target. It can slow the fan when fewer branches are open, trigger filter cleaning only when needed, and alert operators when pressure or flow drifts. This protects capture performance while cutting energy use.

At Mekantra Technologies, airflow measurement and control data form the base for smarter air filtration and energy management.

Key Takeaways

• Dust collector airflow combines volume (CFM), velocity (FPM) and static pressure.
• Use CFM = Area × Velocity to size ducts and add branch flows.
• Match capture velocity at hoods and transport velocity in ducts to the dust type.
• Filters and fittings add pressure loss, so a fan’s rated CFM is not the real CFM.
• Both low and high airflow cost money and add safety risk.
• Measure with a pitot tube and manometer, and monitor continuously with pressure sensors.
